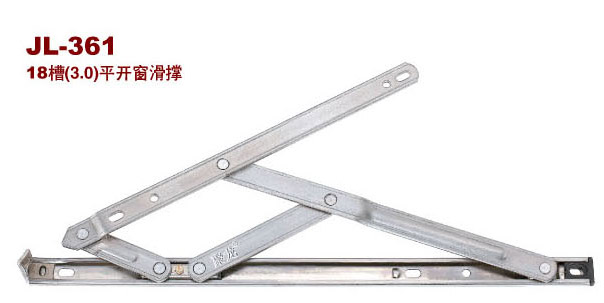

產品名稱：JL-361
產品介紹
|
18槽（3.0）平開窗滑撐系列安裝尺寸 單位：mm |
鋁窗規格 | |||||||||||||||
|
規格 |
L |
A |
B |
C |
D |
E |
F |
G |
H |
I |
連桿數 |
規格 |
窗最高 |
窗最寬 |
窗最重 |
開啟角度 |
|
8" |
203 |
37.4 |
58.4 |
145.4 |
158.9 |
35.8 |
|
157.6 |
|
200.6 |
四連 |
8" |
800 |
400 |
10 |
60° |
|
10" |
254 |
38.8 |
59.8 |
189.8 |
203.3 |
35.8 |
47.8 |
194.6 |
|
251.4 |
10" |
1000 |
500 |
10 |
87° | |
|
12" |
304 |
37.4 |
58.4 |
200.4 |
213.9 |
35.8 |
47.8 |
212.6 |
241.6 |
299.7 |
12" |
1000 |
600 |
14 |
87° | |
|
14" |
355 |
38.8 |
86.8 |
226.8 |
240.3 |
35.8 |
47.8 |
233.6 |
262.6 |
343.6 |
14" |
1200 |
700 |
16 |
87° | |
|
16" |
406 |
38.8 |
86.8 |
235.8 |
249.3 |
35.8 |
47.8 |
262.6 |
291.6 |
400.3 |
16" |
1200 |
800 |
20 |
87° | |
|
18" |
457 |
38.8 |
86.8 |
259 |
272.5 |
35.8 |
47.8 |
292.2 |
321.2 |
446 |
18" |
1200 |
900 |
23 |
87° | |
|
20" |
508 |
38.8 |
63.1 |
319.3 |
332.8 |
35.8 |
47.8 |
263.6 |
292.6 |
500.6 |
四連/五連 |
20" |
1500 |
1000 |
25 |
60° |
|
22" |
559 |
38.8 |
63.1 |
329.3 |
342.8 |
35.8 |
47.8 |
291.6 |
320.6 |
551.4 |
22" |
1500 |
1200 |
27 |
60° | |
|
24" |
610 |
38.8 |
63.1 |
339.3 |
352.8 |
35.8 |
47.8 |
291.6 |
320.6 |
602.4 |
24" |
1500 |
1200 |
29 |
60° | |
